MID approved EM4373 CT 3*230/400V 0.05~5(6)A three phase power quality analyzer~electricity meter

Ask Lasest Price
Brand Name :	Fineco
Model Number :	EM4373
Price :	$32.00/units 34 units
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

MID approved EM4373 CT 3*230/400V 0.05~5(6)A three phase power quality analyzer~electricity meter

MID approved EM4373 CT 3*230/400V 0.05~5(6)A

three phase power quality analyzer electricity meter

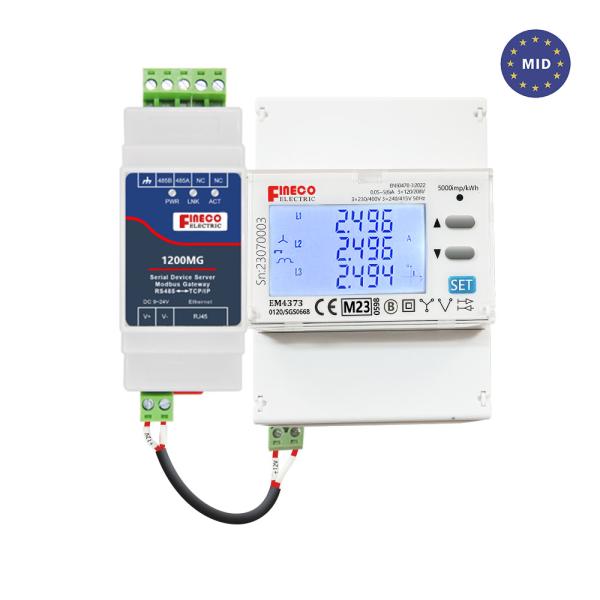

The EM4373 three phase power quality analyzer is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.The instrument provides real-time monitoring of A/B/C three phase Voltage(L-N,L-L), Amp, kW, kVA, kvar, PF, include maximum,minimum, average values. Phase angle, voltage phase sequence indications and Voltage asymmetry & current asymmetry. PT ratio& CT ratio selectable, THD up to 41th order for voltage& current and Maximum demand on Amp & kW& kVA.

The instrument is connected to an external miniature contactor, which can realize remote on/off control of household equipment; The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time.

Series Models:

Model	Nominal voltages	Function

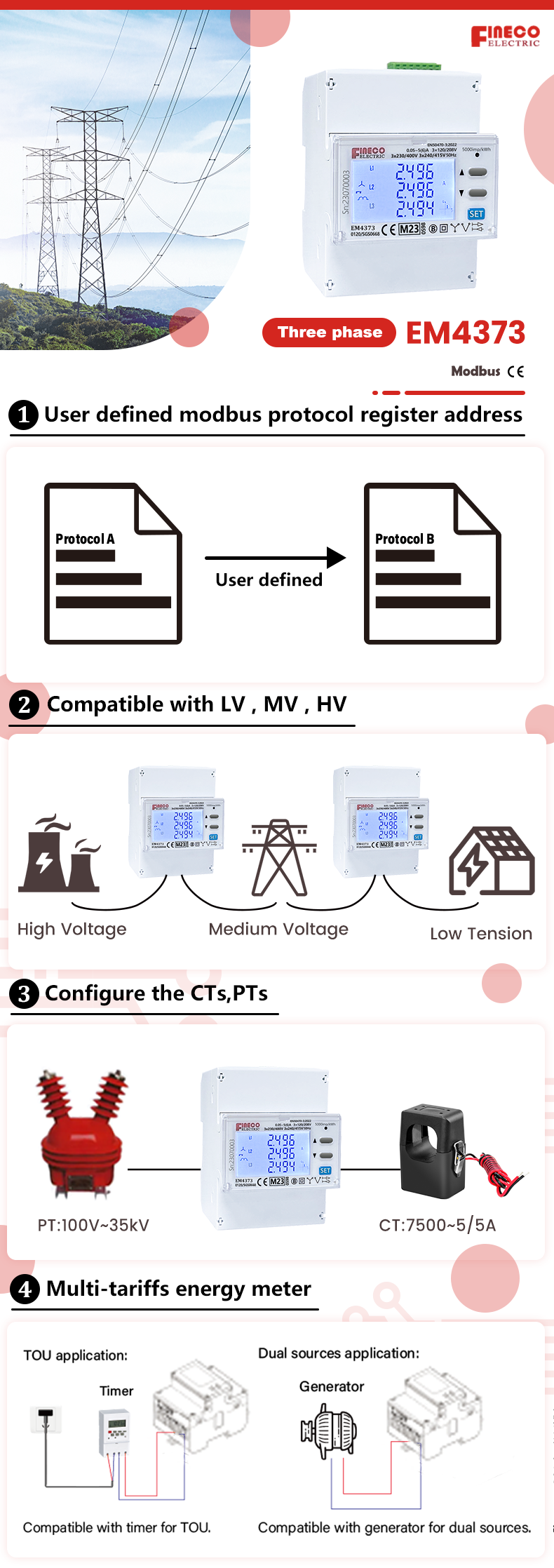

EM4373	3×120/208V~3×230/415V	● Compatible with LV,MV,HV applications ● System wiring method Y/Δ, Voltage L-L from 208V up to 415V ● More than 300 electrical parameters measured and displayed ● Harmonic analysis of voltage and current up to 41st order ● Phase sequence indication ● Voltage Asymmetry (Phase-Phase, Phase-Neural), Current Asymmetry ● Max & Min & Average &demand measure ● Load survey/profile, interval programmable ● Built-in RS485 communication port,modbus protocol ● Available the remote firmware upgrade of the instrument

MID approved EM4373 CT 3*230/400V 0.05~5(6)A three phase power quality analyzer~electricity meter
