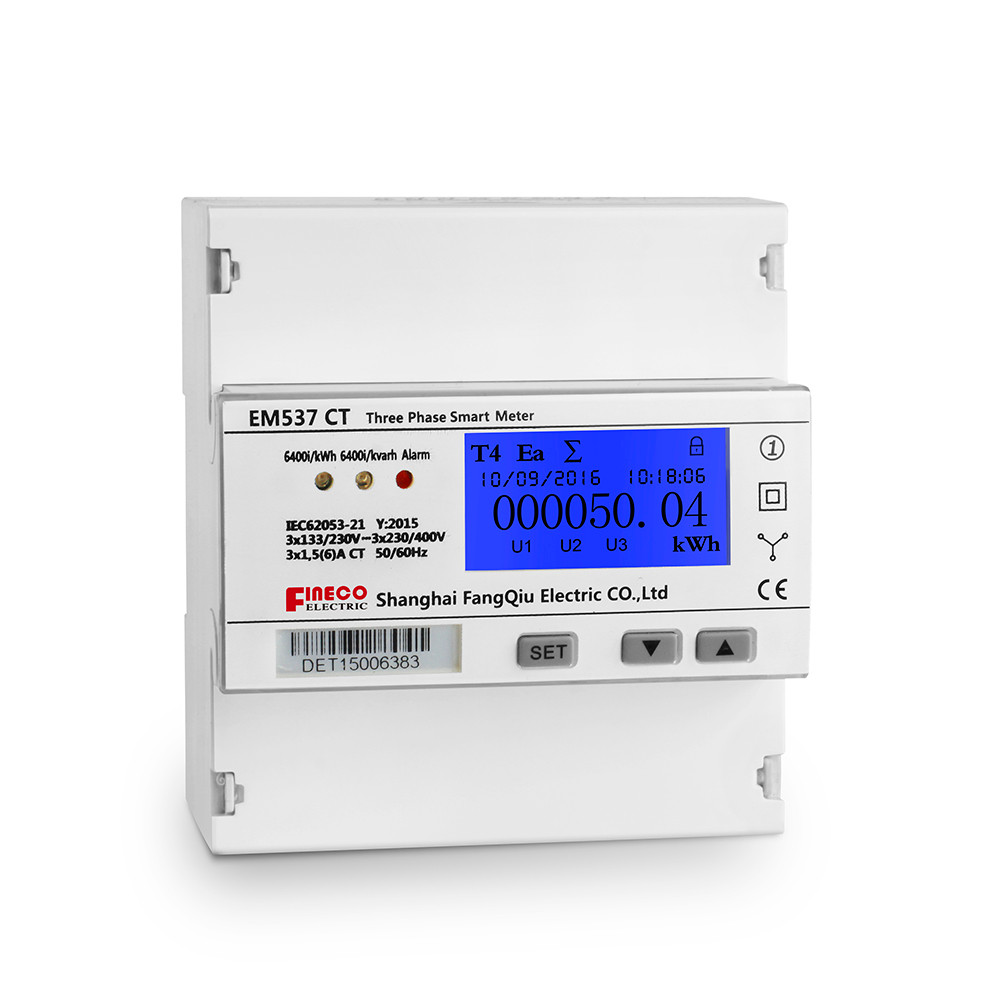

EM537 CT 3*230/400V 1.5(6)A three phase ct connected din rail
modbus energy meter
Benefits and Main Feature
Three phase metering 5 DIN modules, Standard DIN rail Format (DIN43880)
IEC62053-21/22 Class 1.0,0.5S
Bi-directional active energy measuring,4-quadrant reactive measuring for latest 12 months
Block or Rolling Maximum Demand. Records it and its occurent time for latest 12 months.
Electrical measurements: (Volt, Amp, Power factor, Frequency, Active power, Reactive power, Apparent power)
Multi Tariff (4 tariffs, up to 12 time periods per day, up to 64 programmable special days)
Isolate pulse output (DIN43864)
128×64 dot matrix LCD screen
Large clear backlight display
Wide voltage work 85-380 V L-N input
Internal switch power
transformer metering 1.5(6)A
27 CT rate can be selected
Optional single-phase model
RS485 communication port, modbus protocol
Program by button on the nameplate
Memory back-up (EEprom)
CE approval
Meter specification:
Measured Voltage(v) | Wye: 85-380 V L-N |
Current(A) | |
- Iref | 1.5 |
-Itr | 0.15A |
-Imax | 6A |
-Imin | 0.015A |
-Ist | 3mA |
Power consumption of current circuits(VA) | < 0.01 |
Power consumption of voltage circuits(W) | < 1.3W |
General data | |
Frequency (Hz) | 50/60 |
Memory back-up | EEprom |
Environment resistance to heat and fire | Terminal 960℃ Cover 650℃ |
Enclosure material | |
upper | ABS+PC |
lower | ABS+PC |
Pulse output | |
Pulse width(ms) | 100 |
Pulse constant(imp/kWh) | 6400(default) 100/10/1 can be prog |
LED | |
LED constant | 6400 |
Dimension | |
Width (mm) | 90 |
Height (mm) | 104.5 |
Depth (mm) | 60 |
Measuring Function
On the EM537’S front panel, there are three LED, active/reactive energy pulse light, and alarm indicator lights .

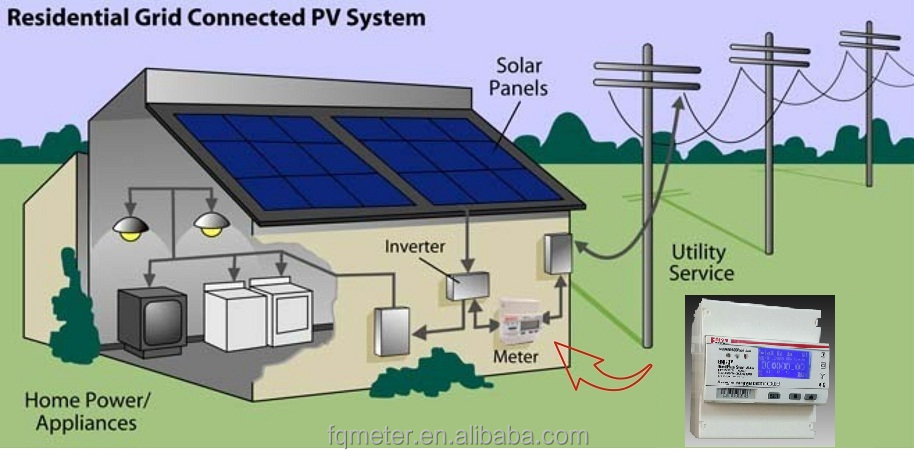

Meter can measure import active energy , export active energy , four-quadrant reactive energy. solar wattmeter
With time-division measurement function, user can store or calculate active and reactive energy according to the time interval of4 tariffs ( T1, T2, T3, T4).
Demand function
The meter can calculate the forward and reverse active/reactive demand and the demand occurrence time.
Data store function
The meter can store total active energy, forward/reverse active total energy and time-sharing energy. Also include the reactive forward/reverse total energy and time-sharing energy, four-quadrant reactive total energy and time-sharing energy.The meter can store current and previous 12months data.
TOU function
The internal clock circuit of energy meter has time automatic switching function. Calendar, clock and rate can be set and adjustment through RS485, infrared interface. At least 4 tariffs and 12 time interval can be set within a natural day
Electricity parameters measurement and monitoring
The meter can measure: voltage, current, active power, reactive power, apparent power,power factor and frequency of each phase. Also can display the direction of the current and power. The resolution of frequency is 0.01Hz. the accuracy of Voltage,current,activepower,reactive power and apparent power is 1%.
Summer/winter time switch permit/prohibition
Smart meter provide automatic summer/winter time switch
accomplished at 02.00 on the last Sunday of March(forward 1 hours)
and at 03:00 on the last Sunday of October(back 1 Hours).
Communication Function
With an infrared COM and a RS485 COM. Its physical layers are independent with each other.The meter can realize data acquisition, broadcast time setting, read, program and manage through hand-held terminals, data acquisition terminal, test equipments and computers.
Using communication function , the smart meter can connection to the Fineco Cloud.The reading can be viewed through the web browse at any time.
Alarm function
When the meter connect wire wrong example: current reverse, lost phase and reversed phase sequence , the meter will display , the ALARM led will be on.
U1 U2 U3
The missing letter means no voltage connection on that phase. The blinking letter means the voltage connection are not correct.
I1 I2 I3
The missing letter means no current connection on that phase
-I1 -I2 -I3
means the current connection is reversed
